Density 56 Flexible Aramid Honeycomb Core With Plum Blossom Cell Size For Aviation

Density 56 Flexible Aramid Honeycomb Core With Plum Blossom Cell Size For Aviation
Density 56 Flexible Aramid Honeycomb Core With Plum Blossom Cell Size For Aviation Density 56 Flexible Aramid Honeycomb Core With Plum Blossom Cell Size For Aviation

Grande immagine :  Density 56 Flexible Aramid Honeycomb Core With Plum Blossom Cell Size For Aviation

Dettagli:
Luogo di origine: Cina
Marca: BEECORE
Certificazione: ISO9001, ISO14001
Numero di modello: BHC1313
Termini di pagamento e spedizione:
Quantità di ordine minimo: 10 pezzi
Prezzo: negotiable
Imballaggi particolari: custodia in compensato
Tempi di consegna: 100 pezzi al giorno
Termini di pagamento: L/C, T/T
Contatto

Density 56 Flexible Aramid Honeycomb Core With Plum Blossom Cell Size For Aviation

descrizione
Nome del prodotto: Nocciolo flessibile di favo d'api di aramide Dimensione della cella: 3.2, 4.8, 6,4,9,5 mm
Spessore: 2 mm o customizabile Misurare: 1220*600 mm o customizabile
Densità: 29, 48,96 kg/m3 o customizabile Vantaggi: Super luce
Materiali: Carta in fibra aramidica Colore: Marrone
Pacchetto: custodia in compensato Applicazioni: Transito della ferrovia, prodotti di sport o altro
Evidenziare:

flexible aramid honeycomb core

,

density 56 honeycomb aviation

,

plum blossom cell honeycomb

Density 56 Flexible Aramid Honeycomb Core With Plum Blossom Cell Size For Aviation
Flexible aramid honeycomb core is a core material featuring a plum blossom structure, extensively utilized in aerospace and industrial applications. Phenolic resin serves as a reinforcing material in the production of aramid honeycomb cores. As mechanical properties continue to advance, these products meet increasingly stringent requirements for aerospace and industrial applications.
Product Specifications
Commercial Grade Flexible Aramid Honeycomb Core
Specifications Cell Size (mm/inch) Density (kg/m³) Compression Strength (MPa) L-Shear Strength (MPa) W-Shear Strength (MPa)
BHC1313-3.2-483.2 / 1/8481.91.160.62
BHC1313-3.2-643.2643.11.480.82
BHC1313-3.2-803.2804.71.951.05
BHC1313-3.2-963.2966.62.451.42
BHC1313-4.8-324.8 / 3/16320.90.580.36
BHC1313-4.8-484.8482.60.980.56
BHC1313-4.8-644.8643.41.70.92
BHC1313-4.8-804.88061.951.1
BHC1313-4.8-964.8967.32.261.32
BHC1313-6.4-246.4 / 1/4240.540.340.18
BHC1313-6.4-326.4320.80.540.3
BHC1313-6.4-486.4482.0510.56
BHC1313-6.4-646.4643.41.540.79
BHC1313-9.5-249.5 / 3/8240.520.320.16
BHC1313-9.5-329.5320.680.560.29
BHC1313-9.5-489.5489.61.150.66
Aerospace Grade Aramid Honeycomb Core
Specifications Cell Size (mm/inch) Density (kg/m³) Compression Strength (MPa) L-Shear Strength (MPa) W-Shear Strength (MPa)
BHC1313A-3.2-483.2 / 1/84821.260.72
BHC1313A-3.2-643.2643.21.580.92
BHC1313A-3.2-803.2804.82.051.15
BHC1313A-3.2-963.2966.72.551.52
BHC1313A-3.2-1283.212811.43.051.88
BHC1313A-3.2-1443.214413.33.152
BHC1313A-4.8-324.8 / 3/163210.680.46
BHC1313A-4.8-484.8482.71.080.66
BHC1313A-6.4-486.4 / 1/4482.151.10.66
BHC1313A-9.5-489.5 / 3/8489.71.250.76
Key Advantages
  • Super light weight with high strength and anti-fatigue properties
  • Outstanding corrosion resistance and flame resistance
  • Excellent environmental adaptability and electrical insulation
  • Good dielectric properties and high stability
Applications
Rail Transit, Aerospace, Radome, Yacht, Sports products, Automobile and more
Aramid honeycomb core applications in various industries
Product Gallery

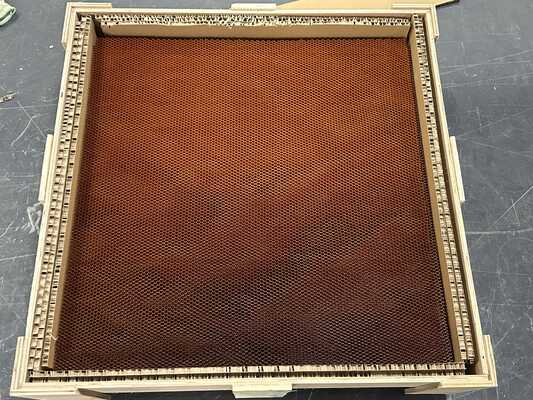

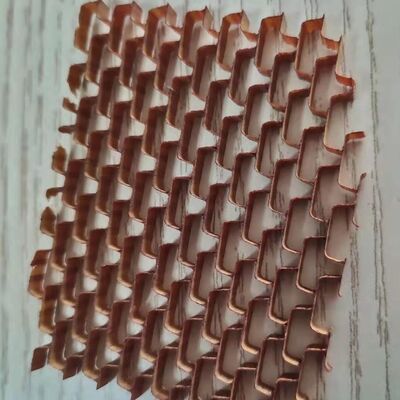

Close-up view of flexible aramid honeycomb core material Flexible aramid honeycomb core sample showing plum blossom cell structure
Company Profile
Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin (Dutch) International Group which was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since its establishment, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to finished products using honeycomb panel solutions such as truck bodies, laser TV/projection screens, and more.
Suzhou Beecore Honeycomb Materials manufacturing facility
Exhibition Show
Beecore exhibition booth showcasing honeycomb materials Beecore products displayed at industry exhibition
Frequently Asked Questions
What is Flexible aramid honeycomb core used for?
Flexible Aramid honeycomb core is one of the best EMI materials. It can be divided into industrial use and aviation use. Aramid honeycomb core has been widely used in Rail Transit, Aerospace, Radome, Yacht, Sports products, Automobile and more.
What are the advantages of flexible aramid honeycomb core?
Aramid honeycomb core has the advantages of super light weight with high strength anti-fatigue, outstanding corrosion resistance and flame resistance, excellent environmental adaptability and electrical insulation, good dielectric properties and high stability.
What is the packaging method of flexible aramid honeycomb core?
Aramid honeycomb core small samples are packed in cardboard and bulk orders are packed in plywood cases.
